SFA Saniwall Pro UP Tileable WC macerator - with built-in frame for suspended WC and complete bathroom



The Saniwall Pro UP Tileable is designed to receive and dispose of wastewater from wall-hung toilets, sinks, bidets and showers, making it ideal for installing a complete bathroom in environments where gravity drainage is not available. The system includes a built-in frame compatible with all standard wall-hung toilets, a Grohe dual-flush cistern (3/6 litres) and a tileable covering with magnetic plates, which allows for aesthetic integration with the bathroom covering. The 400W motor ensures efficient grinding and pumping of wastewater, allowing for drainage of up to 5 metres vertically and 100 metres horizontally. The system is equipped with easy access for maintenance: one to the basket in case of blockages and one to the electrical part for replacing consumable parts, without having to dismantle the toilet or empty the tank.



TECHNICAL FEATURES

• Type : Shredder with built-in frame for suspended toilets

• Number of inlets : 3 (1 x Ø100 mm for WC, 2 x Ø40 mm for washbasin, shower or bidet)

• Recommended drain diameter : 22/28/32 mm

• Motor power : 400 W

• Power supply voltage : 220–240 V / 50–60 Hz

• Electrical class : I

• Degree of protection : IP44

• Noise level : 47 dB(A)

• Flow rate : 90 L/min

• Maximum incoming water temperature : 35°C

• Blade type : Single blade knife



ACCESSORIES INCLUDED

• Support frame

• Grohe flush cistern (3/6 litres)

• Chrome control plate

• Clapet valve (anti-resurgence)

• System connection kit

• Connectors

• Activated carbon filter to neutralize odors

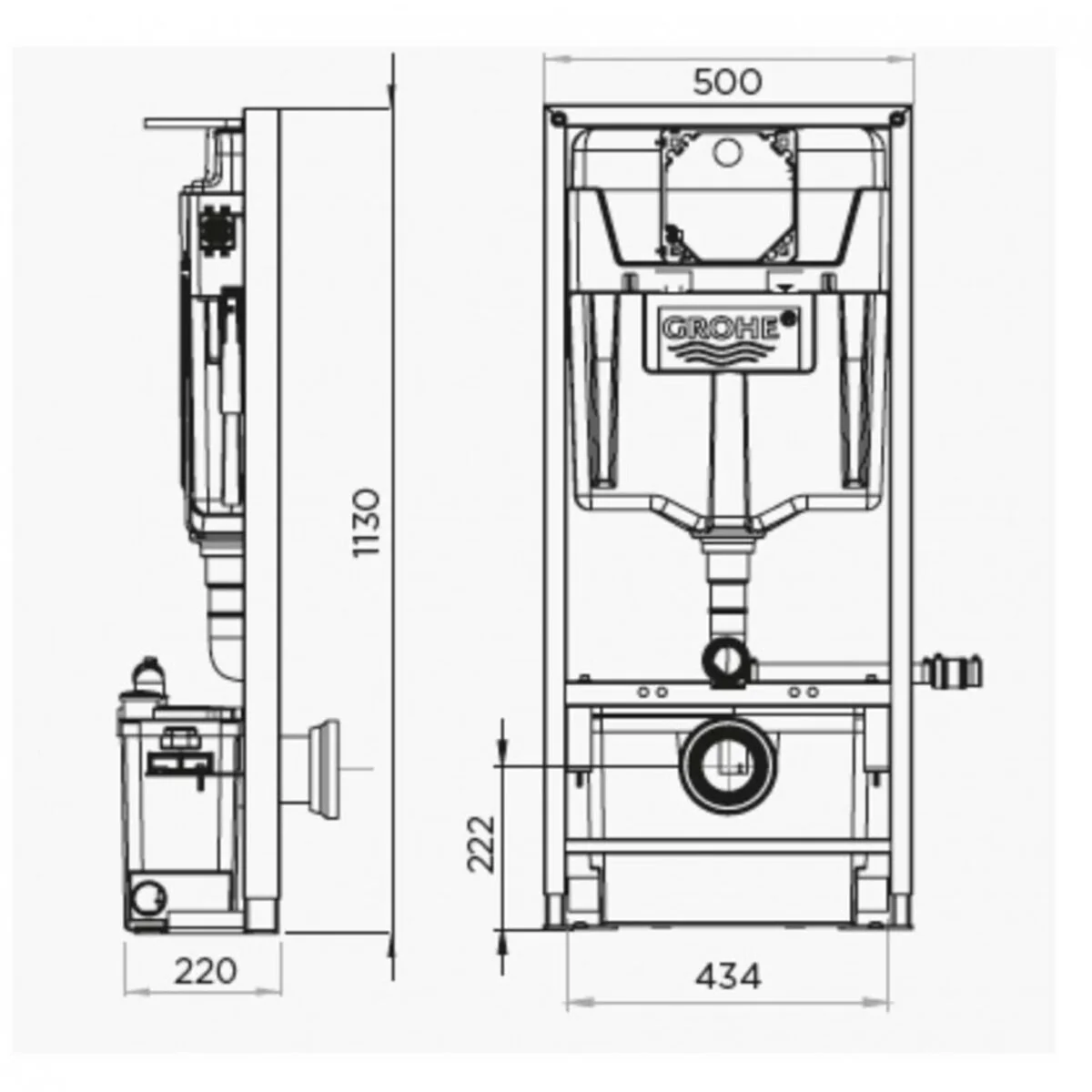

DIMENSIONS

• Width 500 mm_Height 1130 mm_Depth 220 mm

• Weight: 17.5 kg

• Maximum vertical discharge: 5 m

• Maximum horizontal discharge: 100 m

• Minimum height of the shower tray: 13 cm



WARRANTY

The warranty is the official SFA one and lasts 2 years.
