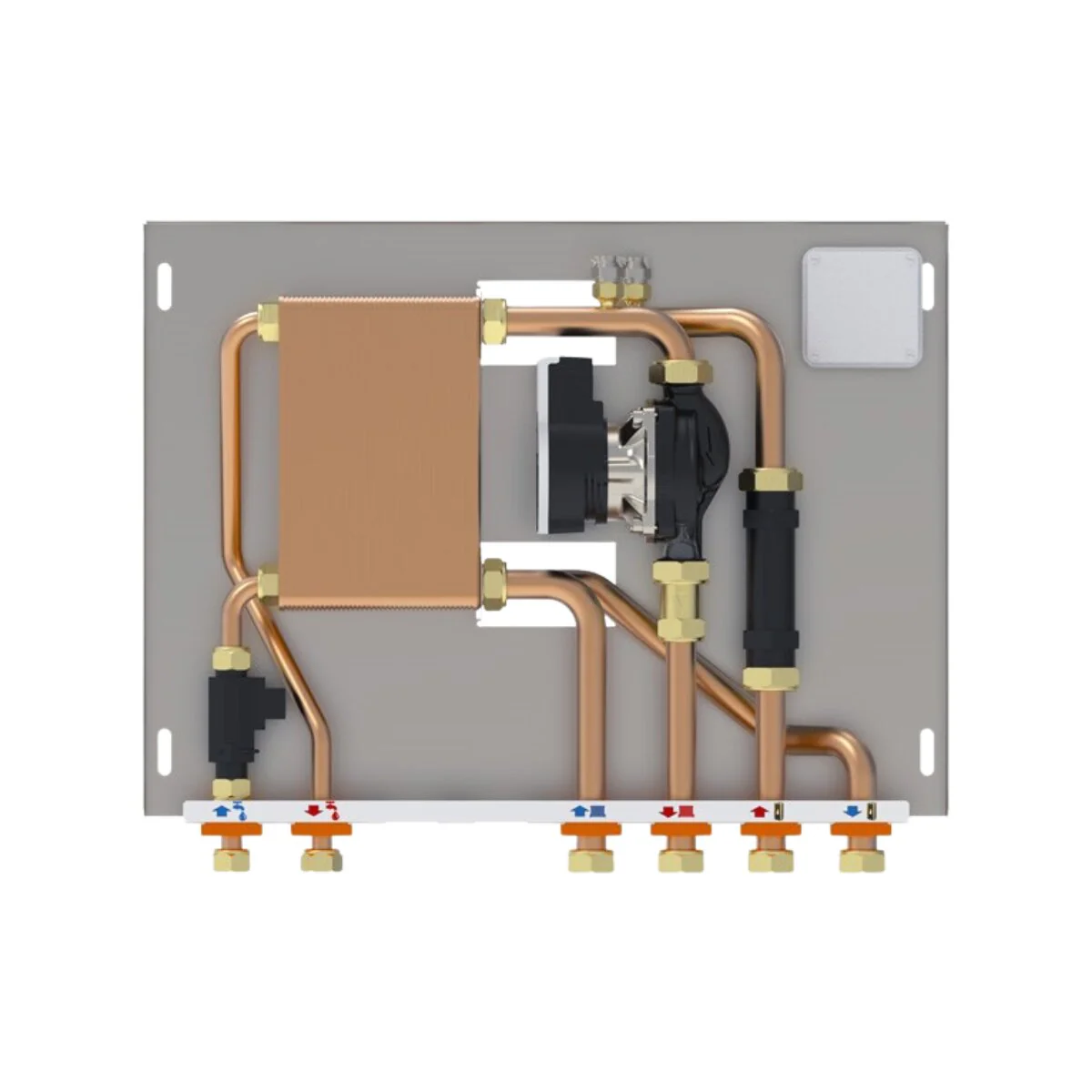

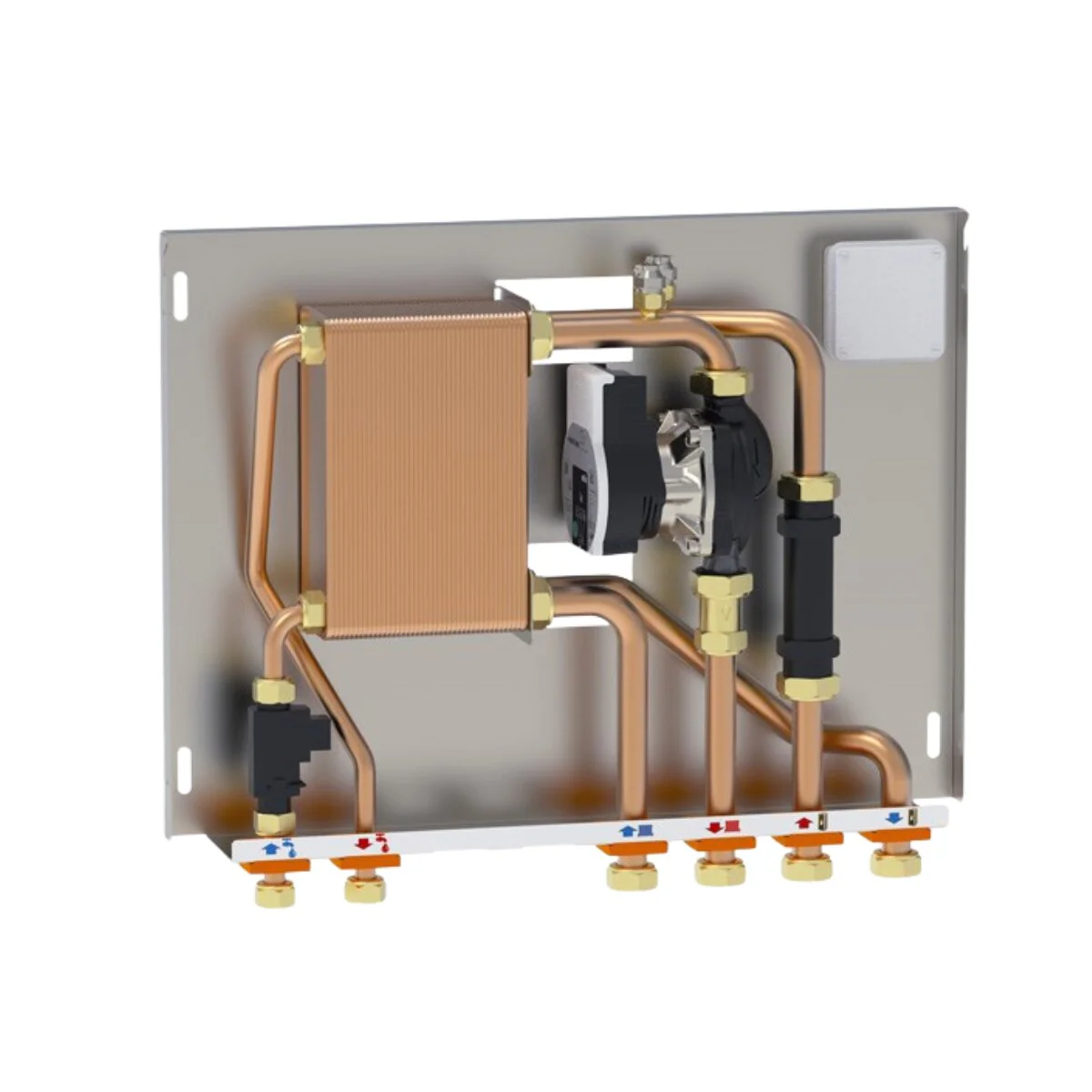

Maxiflame MX135/2 Mini Boiler/Thermoproduct Interface Module with DHW Production



The MX135/2 Mini cod. 135211 from Maxiflame is a compact interface module designed to integrate a gas boiler and a biomass thermoproduct , ensuring the hydraulic separation of the circuits and the automatic management of heating and domestic hot water production.

Thanks to the three-circuit exchanger , the module allows the instantaneous production of DHW , without the need for storage, maintaining small dimensions ideal for domestic installations.

What is it for?

• separate the circuits between the boiler and the thermoproduct
• automatically manage heating
• produce instantaneous ACS up to 12 l/min

A compact module for a complete system.

How it works

• the boiler works initially
• when the thermoproduct reaches the temperature, it automatically takes over
• the module manages the DHW priority via flow switch and distributes the heat to the system

Everything happens automatically, optimizing consumption and comfort.

Applications

Ideal for:

• apartments or homes with limited space
• systems with thermo-fireplace/hydro stove + boiler
• systems without boiler, with instantaneous DHW

As visible in the installation diagram, the module is inserted between the generators and the system, also managing the sanitary utilities.

Technical data

• Power: 30–35 kW
• DHW production: up to 12 l/min
• System exchanger: 20 + 34 AISI 316 L stainless steel plates
• Sanitary exchanger: 16/20 AISI 316 L stainless steel plates
• Circulator: Wilo PARA 15/6 SC (Mini configuration with one pump)
• Connections: 1/2” ACS – 3/4” system
• Dimensions: 503 x 500 x 115 mm

Differences from other MX135 models

MX135/2 (standard)

• ✔ double circulator
• ✔ more performance
• ❌ more cumbersome

MX135/2 Mini (this model)

• ✔ more compact
• ✔ a single pump (managed by control unit)
• ✔ ideal for small spaces

MX135/1 / 1V

• ❌ they do not produce ACS
• ✔ heating or sanitary flow management only

this model is therefore:
the compact version of the MX135/2 with integrated ACS

When to choose it

Choose the MX135/2 Mini if:

• you have little technical space
• Do you want instant ACS without storage?
• you have a hybrid biomass + gas system

The MX135/2 Mini 135211 is the ideal solution for those who want a complete and compact system, capable of automatically managing heating and domestic hot water, guaranteeing efficiency, simplicity and integration between sources.



NB: For further technical details, please see the attached technical data sheet.



WARRANTY

The warranty is the official Maxiflame one and lasts 2 years.
